Standards
Our fabric-reinforced rubber diaphragms can be manufactured to meet U.S., Japanese, British, French, and Chinese standards, as well as customer-specific drawings, specifications, and performance requirements.
Product Overview

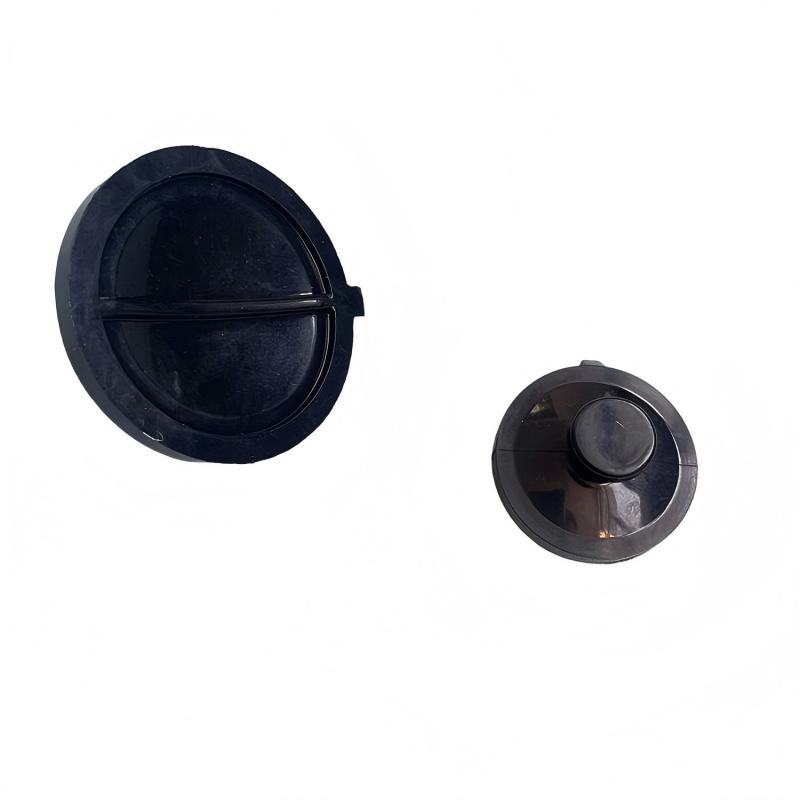

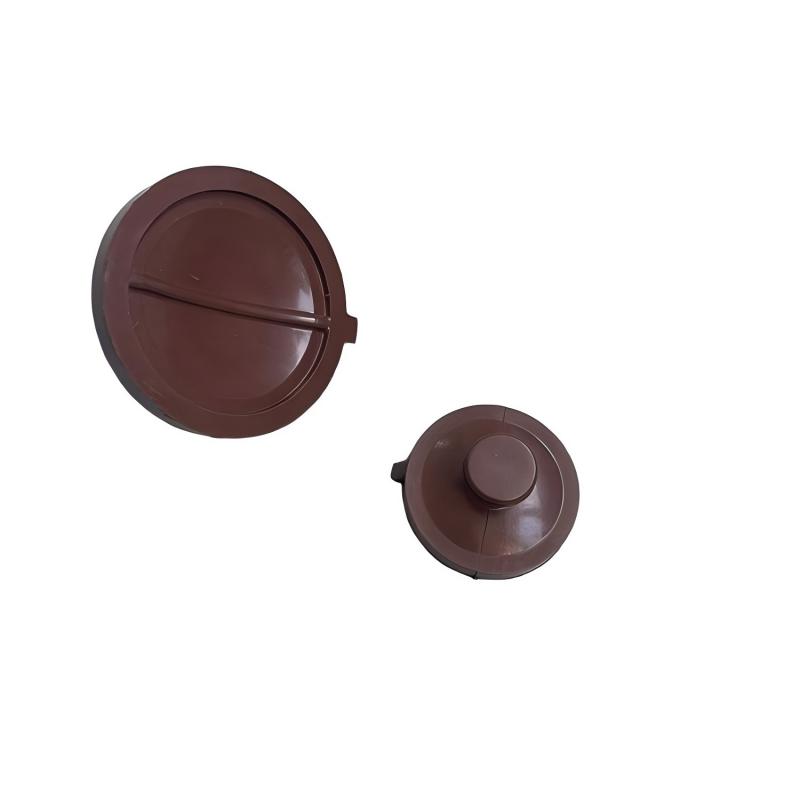

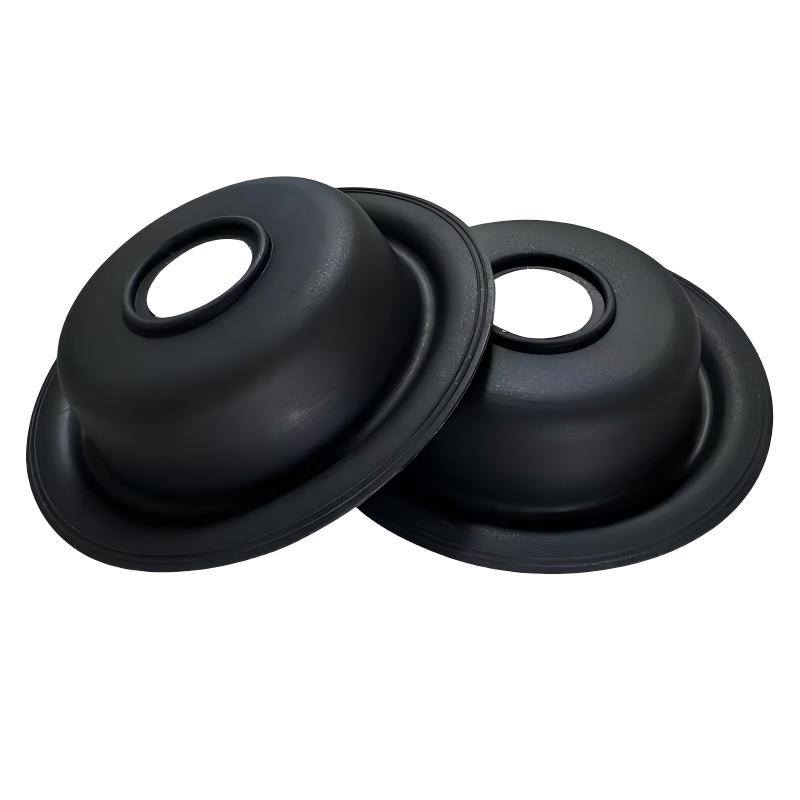

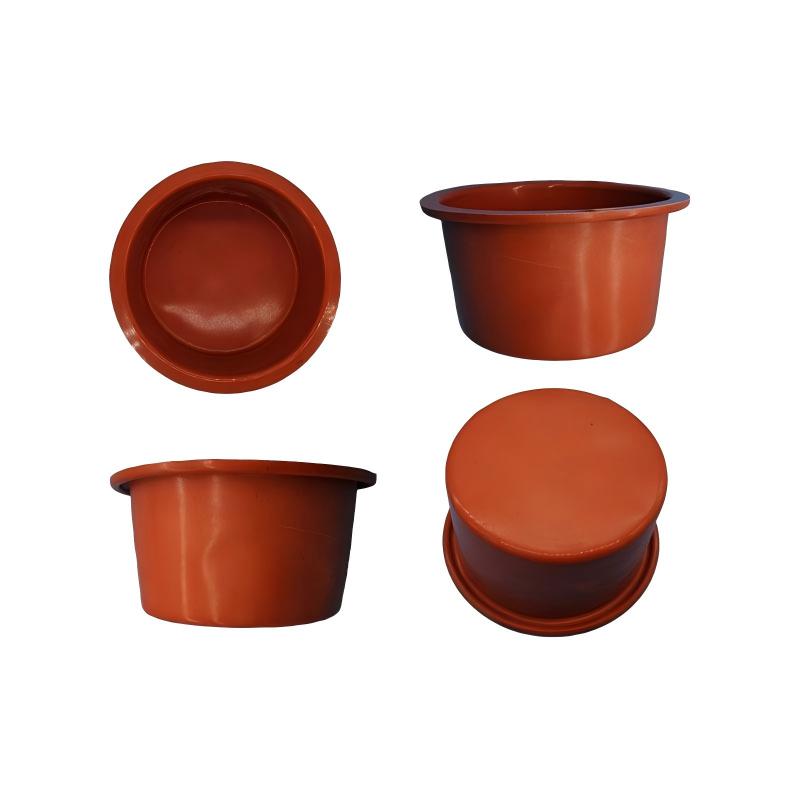

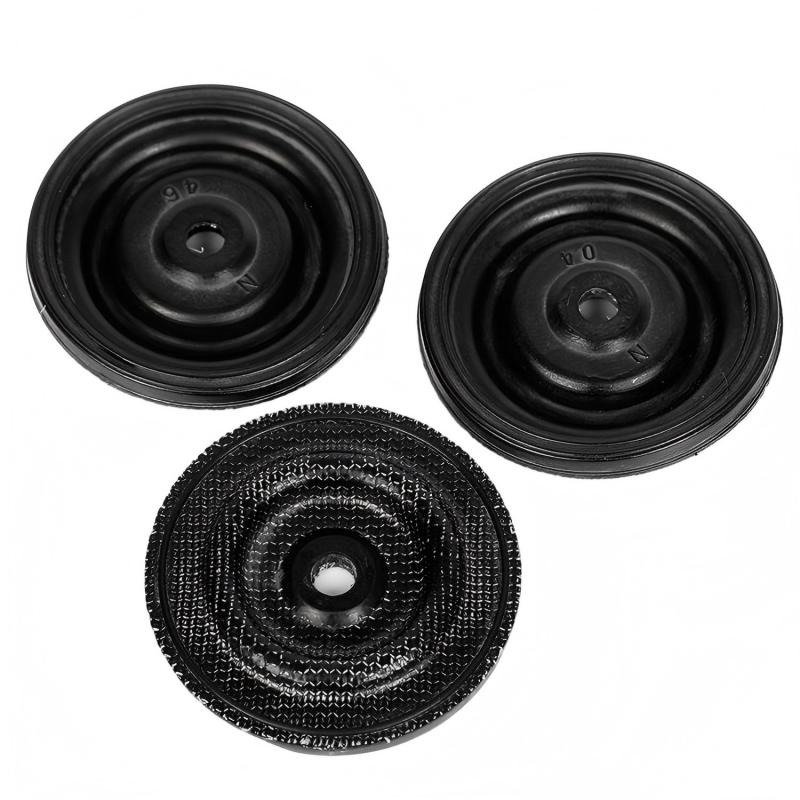

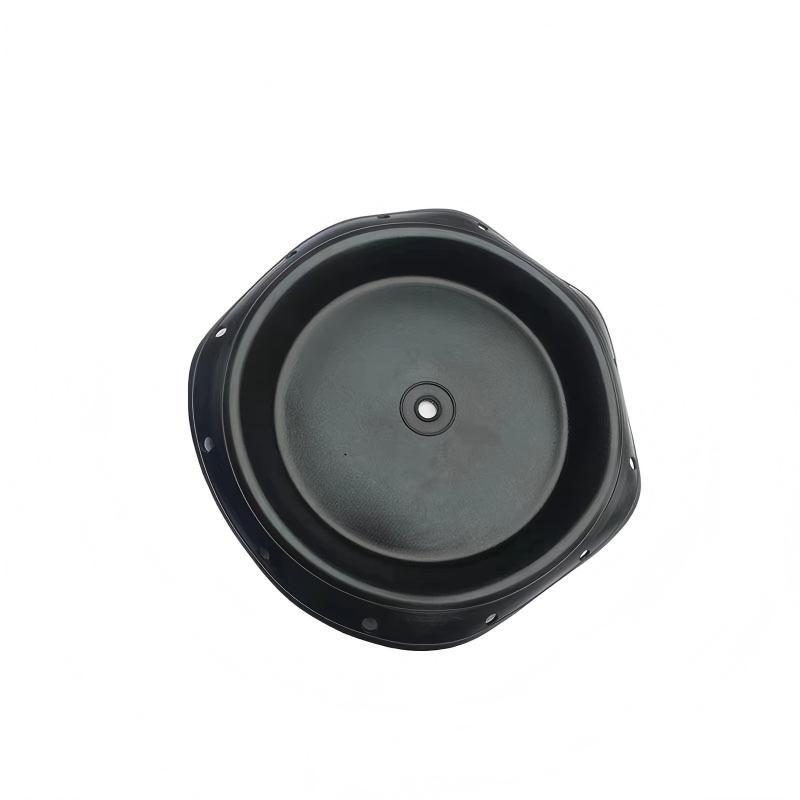

Fabric-Reinforced Rubber Diaphragms combine a flexible rubber compound with a high-strength fabric reinforcement layer to provide enhanced pressure resistance, dimensional stability, durability, and sealing performance.
We offer a wide range of rubber compounds to suit different operating environments, including:
- NBR (Nitrile Rubber)
- Low-Temperature NBR
- EPDM
- HNBR (Hydrogenated Nitrile Rubber)
- FKM (Fluoroelastomer)
- FVMQ (Fluorosilicone Rubber)
- VMQ (Silicone Rubber)
- Other specialty elastomer compounds available upon request
Key Features
- Fabric-reinforced constructionfor improved mechanical strength
- High pressure resistancefor demanding applications
- Excellent dimensional stabilityunder repeated movement and pressure
- Reliable airtight sealing performance
- High sensitivity and responsive movementfor precise pressure control
- Excellent durability and fatigue resistance
- Available in different rubber compounds and reinforcement configurations
Manufacturing & Customization
Our fabric-reinforced diaphragms are manufactured using precision die-cutting processes, providing consistent dimensions and stable product quality.
We support custom diaphragms based on customer drawings, samples, specifications, and application requirements, with the rubber compound, fabric reinforcement, dimensions, and performance characteristics tailored to the intended operating conditions.
