Standards
Our metal-reinforced rubber diaphragms can be manufactured to meet U.S., Japanese, British, French, and Chinese standards, as well as customer-specific drawings, specifications, and performance requirements.
Product Overview

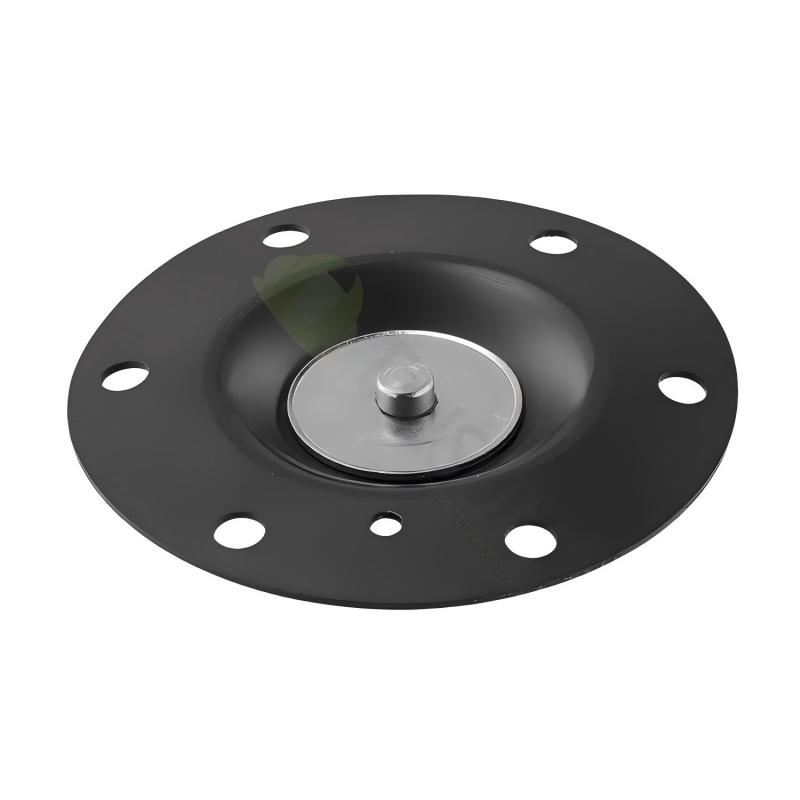

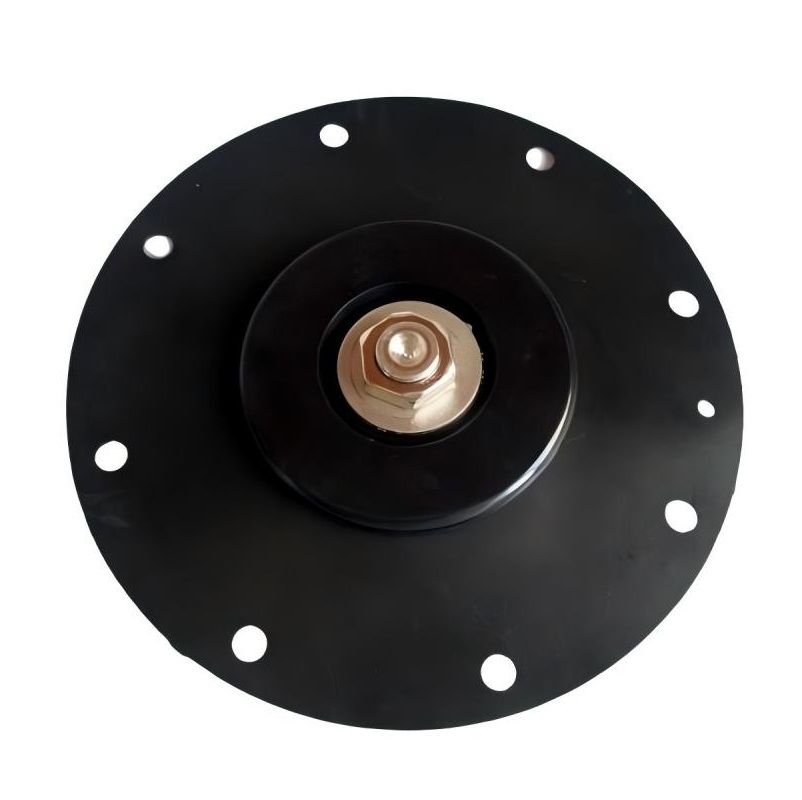

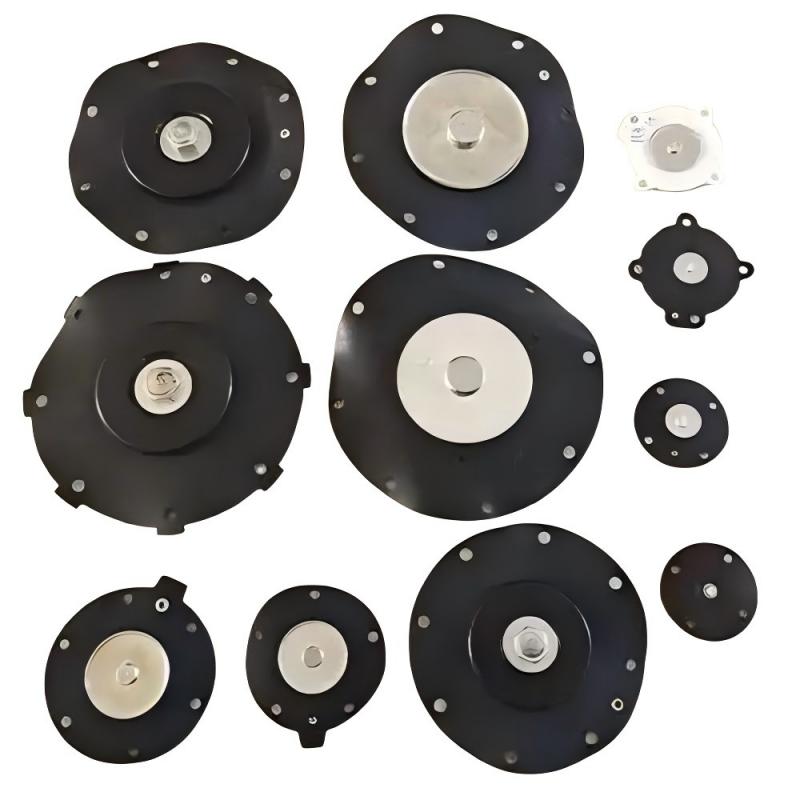

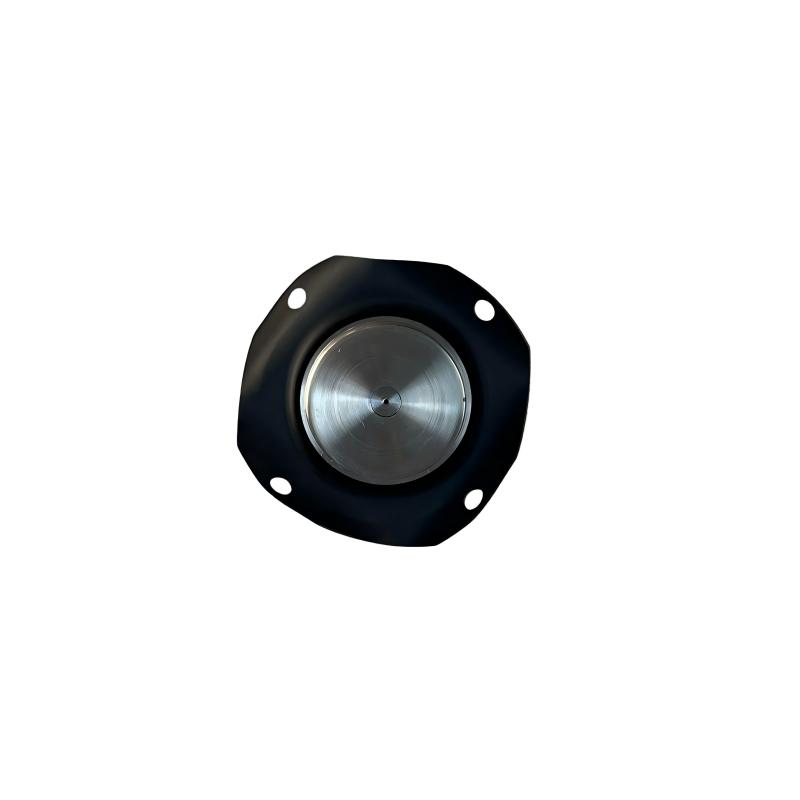

Metal-Reinforced Rubber Diaphragms combine the flexibility and sealing properties of elastomers with the mechanical strength and dimensional stability of metal reinforcement.
This composite construction provides excellent pressure resistance, structural stability, fatigue resistance, and sealing performance, making these diaphragms suitable for demanding applications where conventional rubber diaphragms may not provide sufficient mechanical strength.
Depending on the application, the metal reinforcement can be integrated into the diaphragm to improve shape retention, load-bearing capability, and resistance to deformation during repeated pressure cycles.
Available Rubber Materials
We can manufacture metal-reinforced diaphragms using a wide range of elastomers, including:
- NBR (Nitrile Rubber)
- EPDM
- HNBR (Hydrogenated Nitrile Rubber)
- FKM (Fluoroelastomer)
- FVMQ (Fluorosilicone Rubber)
- VMQ (Silicone Rubber)
- CR (Neoprene)
- Other specialty elastomers upon request
Key Features
- Rubber-metal composite construction
- High mechanical strength and dimensional stability
- Excellent pressure and deformation resistance
- Reliable sealing performance
- Good fatigue resistance under repeated flexing
- Stable performance under demanding operating conditions
- Customized metal reinforcement and rubber compounds
- Suitable for high-cycle and precision control applications
Typical Applications
Metal-reinforced rubber diaphragms are widely used in valves, pumps, pressure regulators, pneumatic equipment, hydraulic systems, actuators, industrial control equipment, and automotive components.
We provide OEM and custom manufacturing based on customer drawings, samples, technical specifications, or application requirements. Rubber compound, metal reinforcement, dimensions, thickness, and performance characteristics can be customized to suit specific operating conditions.
